It is this index that forms the basis of our project. Given that we are the Excel Community, it seemed only right to consider the use of Excel as a method of making our archive of articles far more useful to our members. Excel and Power Query do have a part to play, but the majority of the project will be based on the freely available Excel spin-off product: Power BI Desktop. If you haven't already explored Power BI, you can find out more about it, and download the desktop edition for free, at:

Power BI Desktop

Our Power BI report is based on combining the separate index pages for Tech News and the Excel Community to create a comprehensive table of links to the underlying articles. Because the archive is now fixed, this doesn't involve creating any dynamic link to the index pages on the Internet. Instead, we have just copied the index tables and pasted them into an Excel workbook. This also makes it possible to add columns to the original tables to hold information that will make the archive more accessible and more useful: for example, keywords and summaries to facilitate searching the archive.

We will be making the various project stages accessible as we go, meaning that you can add your own information or categorisations.

The story so far:

Excel archive file

Part 1 – from web page to Excel Table

Part 2 – from Excel Table to web page

Spreadsheet Knowledge Base launches

Power BI report

So far in Power BI, we have just linked to the combined table in the Excel workbook and added our Post field to the report which created a 'Table' visualization. We then added our additional, Hyperlink, column to the table and changed the Table properties to show that new column as a link icon rather than a long text URL. This Table will become the focus of our report, showing the list of posts that match different filter criteria and displaying further information about the contents of each post.

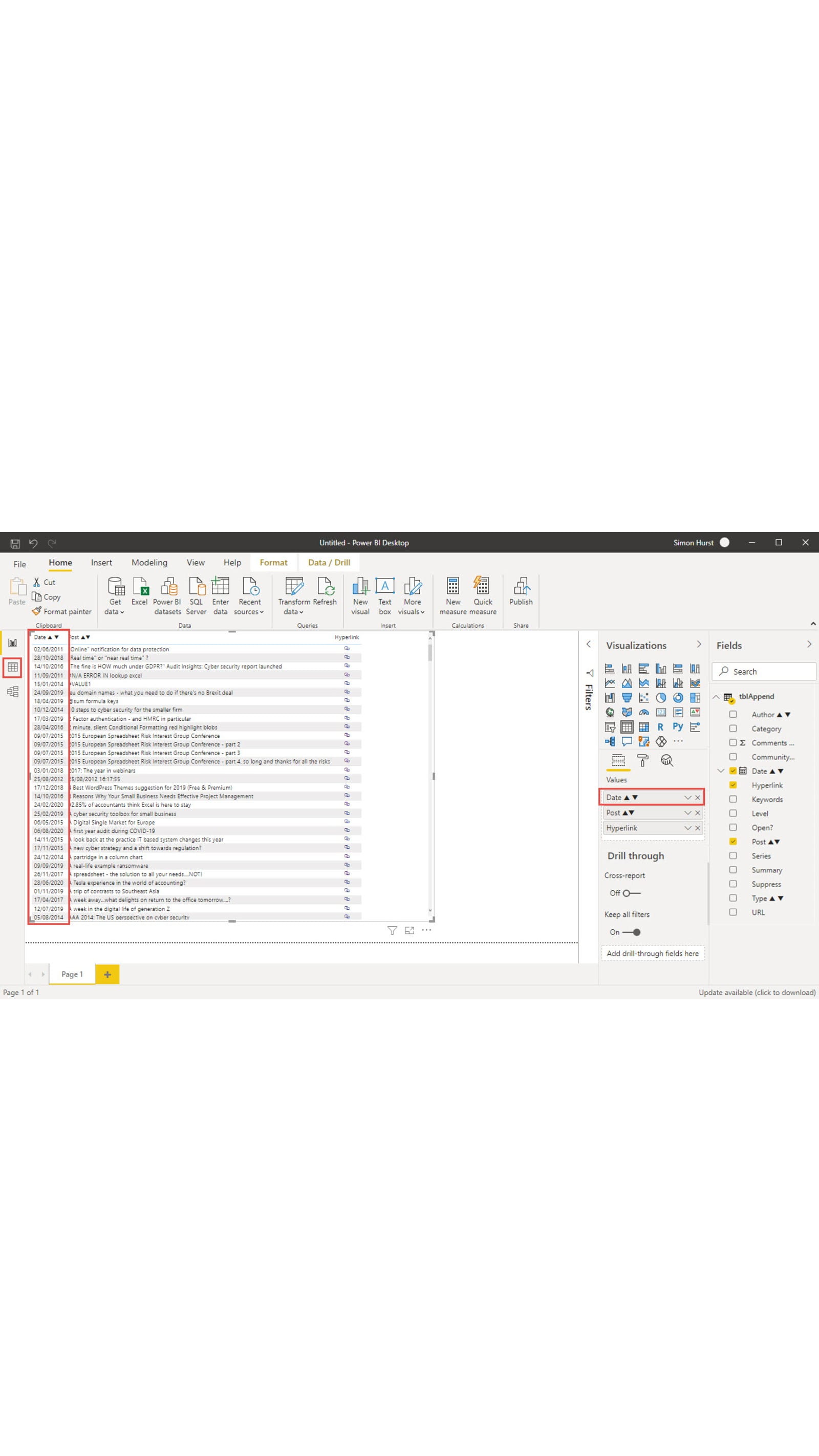

First of all, we will add a date column. This is not quite as straightforward as just selecting the existing Table and then selecting the check box next to the date field in the Fields pane. Doing this will, by default, add a full date hierarchy to our report. Instead of such a hierarchy, we just want a very narrow column that gives us the ability to sort our Table by date. Accordingly, we go to the Date dropdown in the Values area of the Visualizations pane and choose Date, rather than the existing Date Hierarchy:

We can also drag the date field to the top of the list in order to show it as the leftmost column in our Table:

The date is currently formatted as a short date using the format dd/mm/yy. We could further condense the date to just display the year, by changing the format in the Data view, selected from the three icons to the left of our report page:

Here, we have clicked on the Date column header to select the column and then used the Format dropdown to choose the required date format.

It is now possible just to click on the Date header to sort our list of posts in Ascending or Descending date order.

Next, we will look at formatting our Visualization. The Visualizations pane displays the properties of the currently selected Visualization. Properties are divided into three categories Fields, Format and Analytics, and the pane displays the properties for whichever of those categories is chosen by using the icons at the top of the properties section of the pane. We have already used the Fields properties to change the way our fields are displayed and the order of columns. To change the formatting, we click on the middle, Format, icon to display a list of attributes relevant to the type of visual in use. Clicking on an attribute heading then displays or hides the list of detailed properties for that attribute. In this example, we have selected Values to change the formatting of the contents of our Table columns. We have then increased the font size to 20 pt:

We are not limited to static formatting; we can also apply conditional formats. Towards the bottom of the list of attributes is the Conditional formatting section. Here, we have chosen to apply a conditional format to the Posts column. We have turned on the Background Colour format and clicked on the Advanced controls link:

This displays a screen similar to the Excel Conditional Formatting dialog. We have chosen Level in the 'Based on field' dropdown. Note that your Level field is likely to have a text, rather than number, data type which will only allow you to use Count of Level. We can change this by using the Table view, in the same way that we did when we changed the format of the Date field. In this case, we change the Data type to Whole number, rather than changing the format. Once the Level data type is set to a number, we should be able to select Level as a sum from the 'Based on field' dropdown. We have also changed both the Minimum and Maximum values to be Custom entries of 0 and 4 respectively to include our 4 levels from 1-4 and to use 0 to show where we haven't yet allocated a Level value.

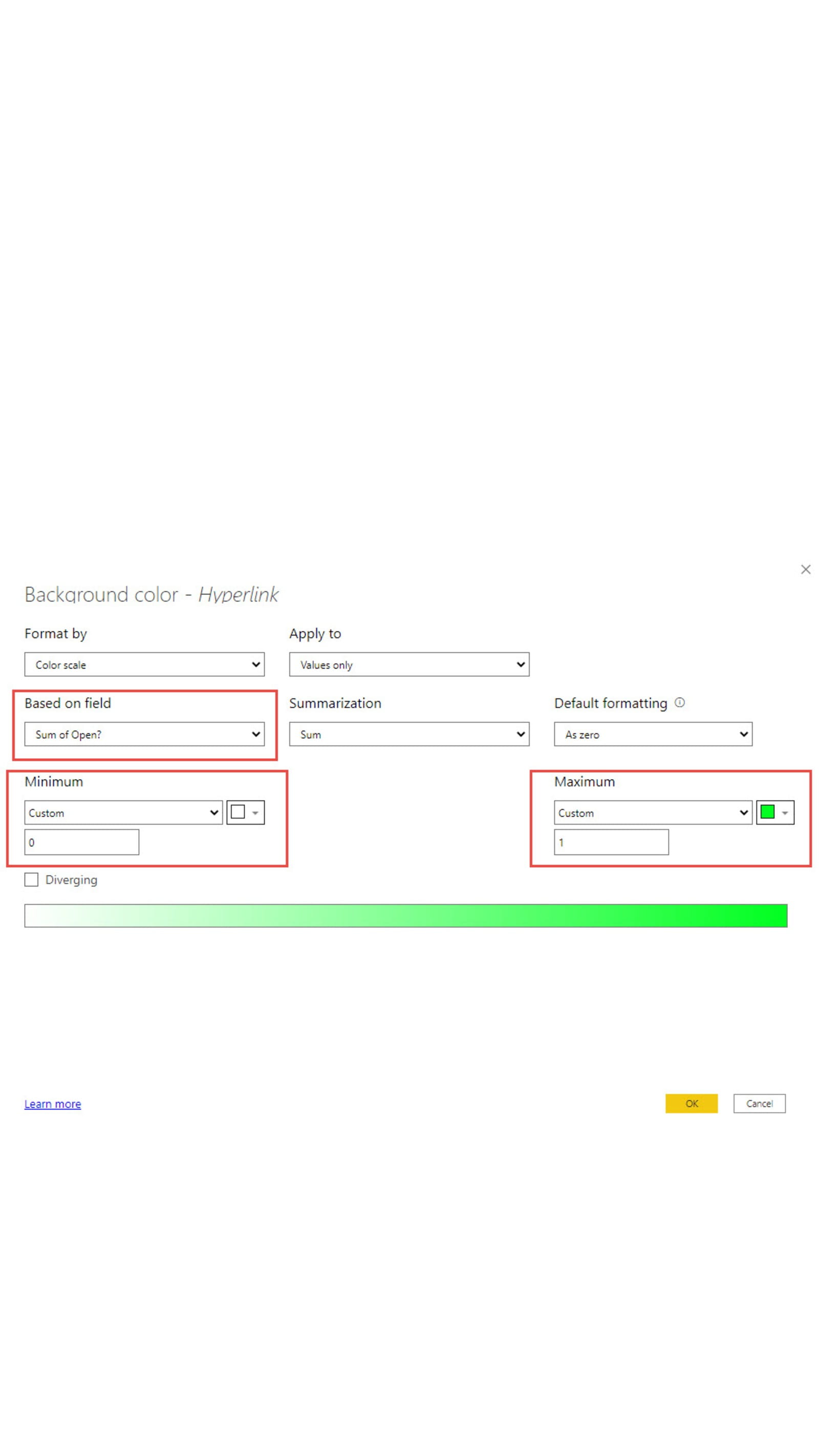

We can use an almost identical technique to set the data type of our Open? field to a whole number and use it to show posts that are open to all, with a green background:

Next time, we will start to add other Visualizations to our report to help us unearth the many gems within our archive treasure trove.

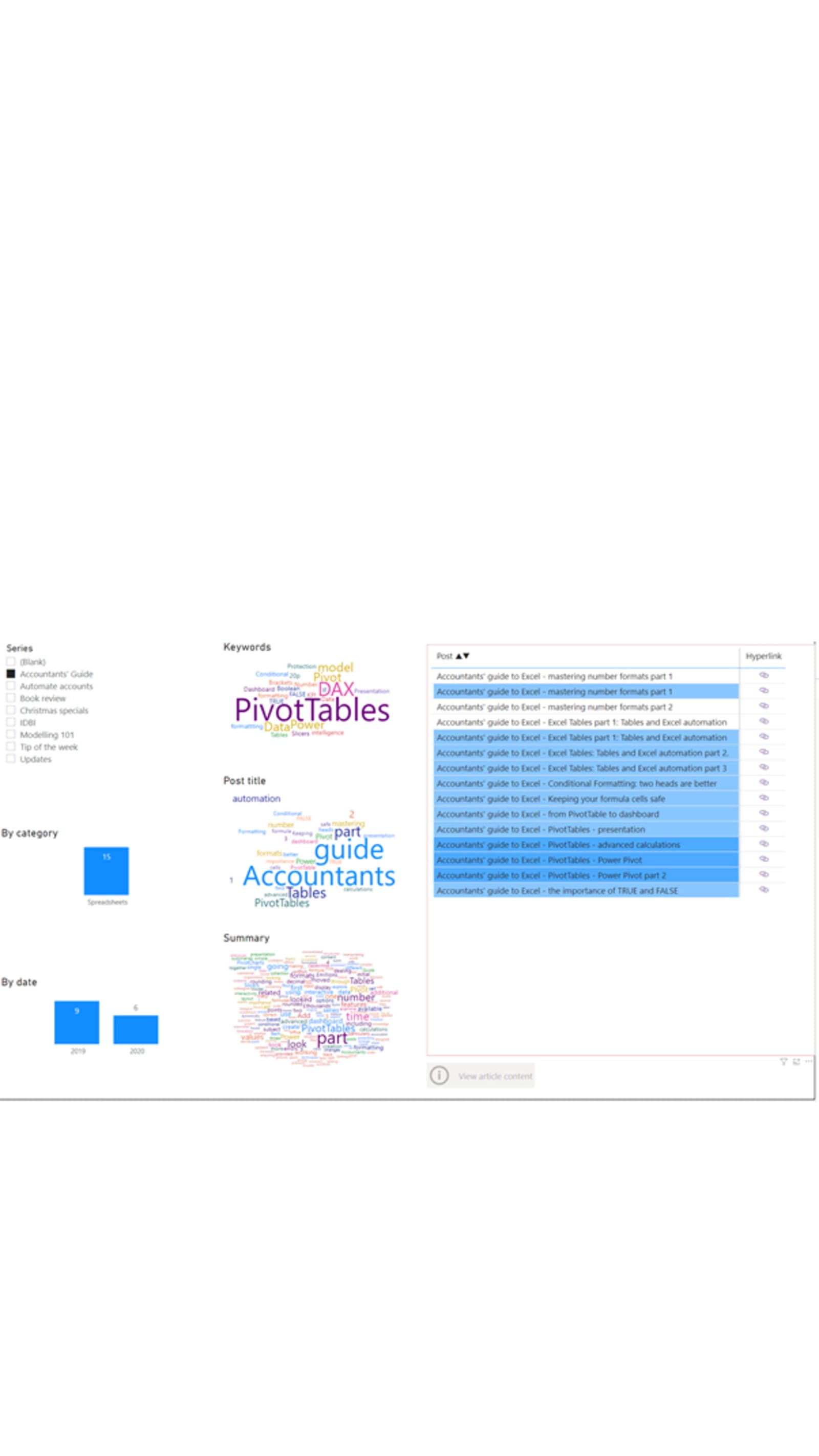

We have embedded the current stage of project development below:

The 'Open in full-screen mode' icon in the bottom right-hand corner of the embedded report should show the contents at a more readable size with the Escape key returning you to the post.

At the moment, it is still very much a work in progress and any comments on useful ways in which we could provide access to the community content would be very welcome:
